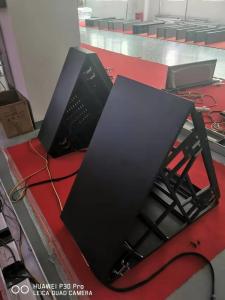

100W P2.5 SMD1921 Led Taxi Car Top Display Sign Three Sided Screen For Roof Advertising

Product Categories

Shenzhen 3U View Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 100W P25 SMD1921 Led Taxi Car Top Display Sign Three Sided Screen For Roof Advertising
Brand: 3U View
Price: 1 USD

Brand Name : 3U View

Model Number : P2.5

Certification : TS16949 CE FCC 3C

Place of Origin : China

MOQ : 1

Price : Arguable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 2000/set/month

Packaging Details : Export Standard Plywood Carton

Delivery Time : 3-25 working days after received your payment

Pixel Pitch : 2.5mm

LED Type : SMD1921

Display Size : 960*320mm

Cabinet Weight : 38kg

Power Supply : 9-36V

Brightness : ≥5000㎡

Contact Now

NO.	Item	Paramenters
Screen Parameters
1	Pixed Pitch	2.5mm
2	LED Type	SMD1921
3	Display Size	960*320mm
4	Cabinet Resolution	3841922
5	Overall Size	1100(L)360(H)950(W)mm
6	Cabinet Weight	38KG
7	Brightness(cd/ m2)	≥5000cd/m²
8	Max.Power(≤W/set)	280W
9	Ave.Power(≤W/ set)	100W
Cabinet Material
1	Cabinet Material	Aluminium
2	Cabinet Color	Black
Power supply and wire
1	Power	It has over-current and over-voltage protection function and reverse connection protection function. The power supply is equipped with fuse and sufficient margin is reserved to ensure that the normal use is affected by temperature changes in winter and summer
2	Input Voltage	DC 9 ~ 36V
3	Output Voltage	DC 5V
4	Wire	Main power line: 4mm ²* 2+0.75mm ²* 1. Pure copper cable (ensure sufficient use allowance and safety), with a total length of 5m
Control Mode
1	Control System	Android+4G+AP+WiFi+GPS+8GB Flash
2	Control Mode	4G wireless transmission
3	Supported Formats	JPG,GIF ,BMP, WMF,MP4
Product Performance
1	Screen life	more than 100000 hours
2	Protective Performance	Dust against, moisture against, high temperature against , anti-static and anti vibration against
3	Environmental requirements	Temperature: - 35℃ ~ + 80 ℃ humidity: 10% ~ 95% RH
